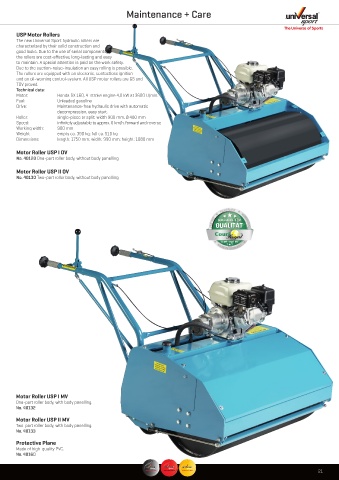

Page 23 - Universal-Sport-Tennis-2021-22

Maintenance + Care

USP Motor Rollers
The new Universal Sport hydraulic rollers are
characterized by their solid construction and
good looks. Due to the use of serial components,
the rollers are cost-effective, long-lasting and easy
to maintain. A special attention is paid on the work safety.
Due to the suction-noise-insulation an easy rolling is possible.
The rollers are equipped with an elecronic, contactless ignition
and an oil-warning control-system. All USP motor rollers are GS and
TÜV proved.
Technical data:
Motor: Honda GX 160, 4-stroke engine 4,0 kW at 3600 U/min.
Fuel: Unleaded gasoline
Drive: Maintenance-free hydraulic drive with automatic
decompression, easy start.
Roller: single-piece or split; width 900 mm, Ø 480 mm
Speed: infinitely adjustable to approx. 6 km/h, forward and reverse
Working width: 900 mm
Weight: empty ca. 390 kg; full ca. 510 kg
Dimensions: length: 1750 mm; width: 990 mm; height: 1080 mm

Motor Roller USP I OV
No. 40120 One-part roller body, without body panelling

Motor Roller USP II OV
No. 40130 Two-part roller body, without body panelling

GÜTESIEGEL FÜR
GÜTESIEGEL FÜR
QUALITÄT
QUALITÄT
court-royal.de
court-royal.de

Motor Roller USP I MV
One-part roller body, with body panelling.
No. 40132
Motor Roller USP II MV
Two-part roller body, with body panelling.
No. 40133
Protective Plane
Made of high-quality PVC.
No. 40160
